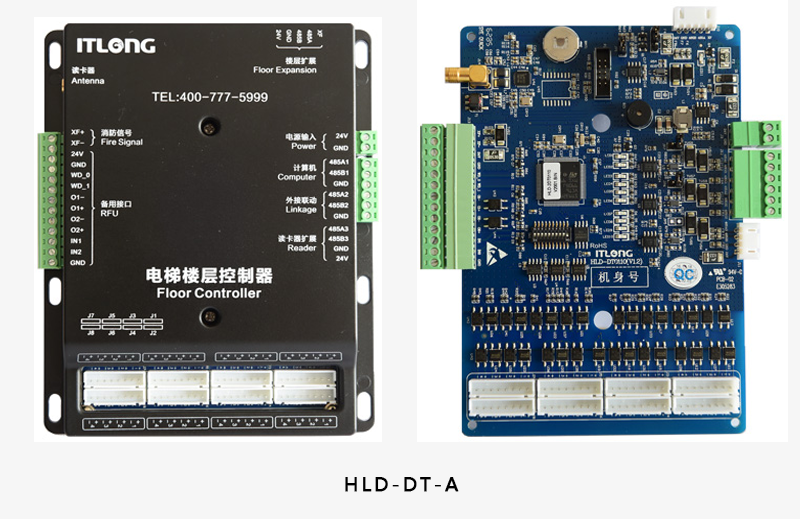

ITLONG elevator access control system is designed to control the elevator access. The authorised person reaching the appointed floor by swiping the card, no need pressing a button, while the unauthorized person can’t take the car to reach the appointed floor. The elevator access control system improves the security level, reduces the maintenance costs, prolongs the life of the elevator and strengthens the internal management. This system is widely used for applications like high-end communities, office buildings, hotel etc.

                          Power : 24V ;

                          Communication Interface: RS485;

                          Housing size: 125*153*25 mm;

                          Blacklist : 8000 messages;

                          Storage datas: reserve 30080 messages offline records;

                          The main board controls:16 floors;

                          Max. expansion board num.: 12 pcs;

                          Max. controlled floor num.: 112 floors.
